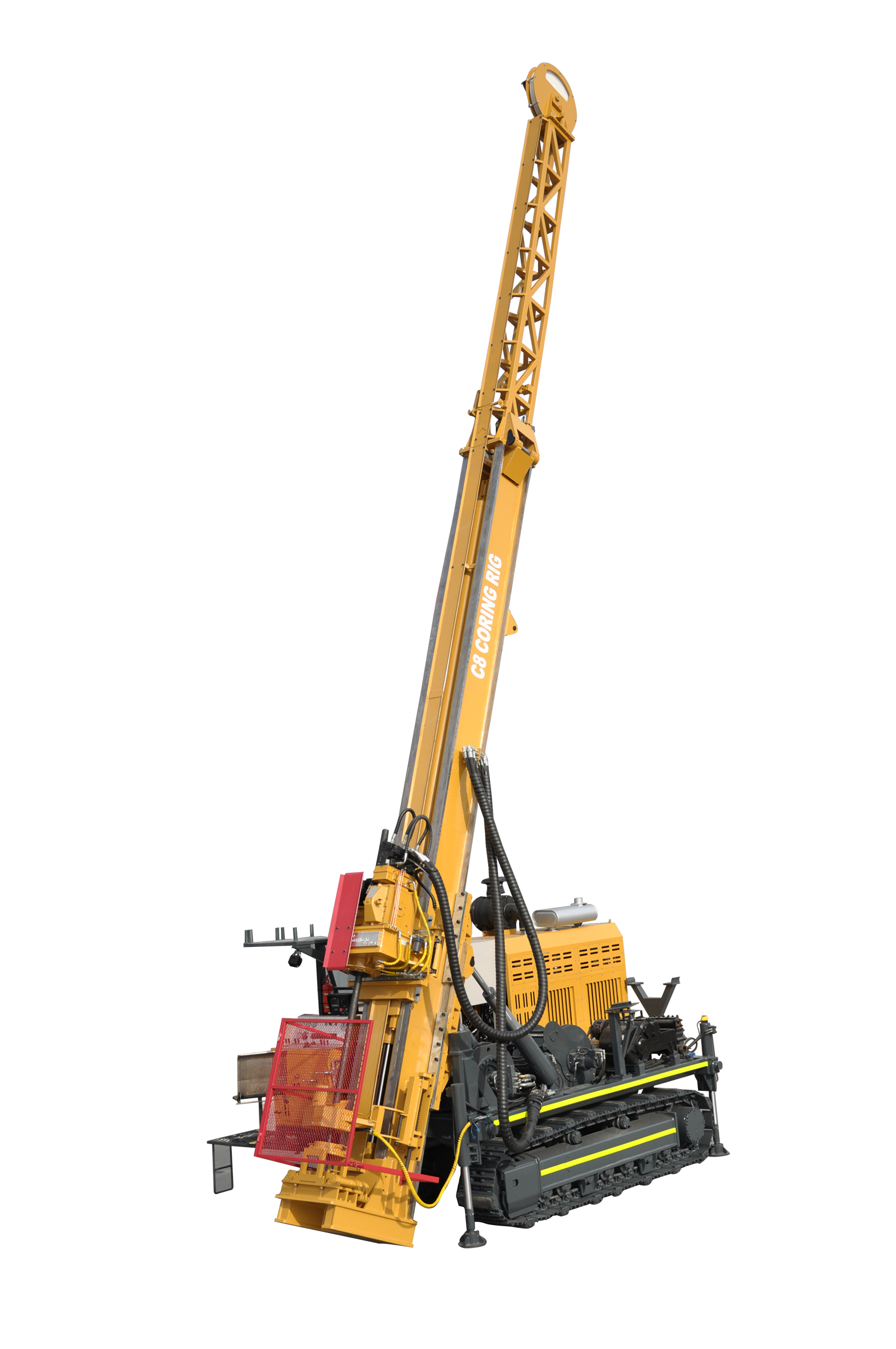

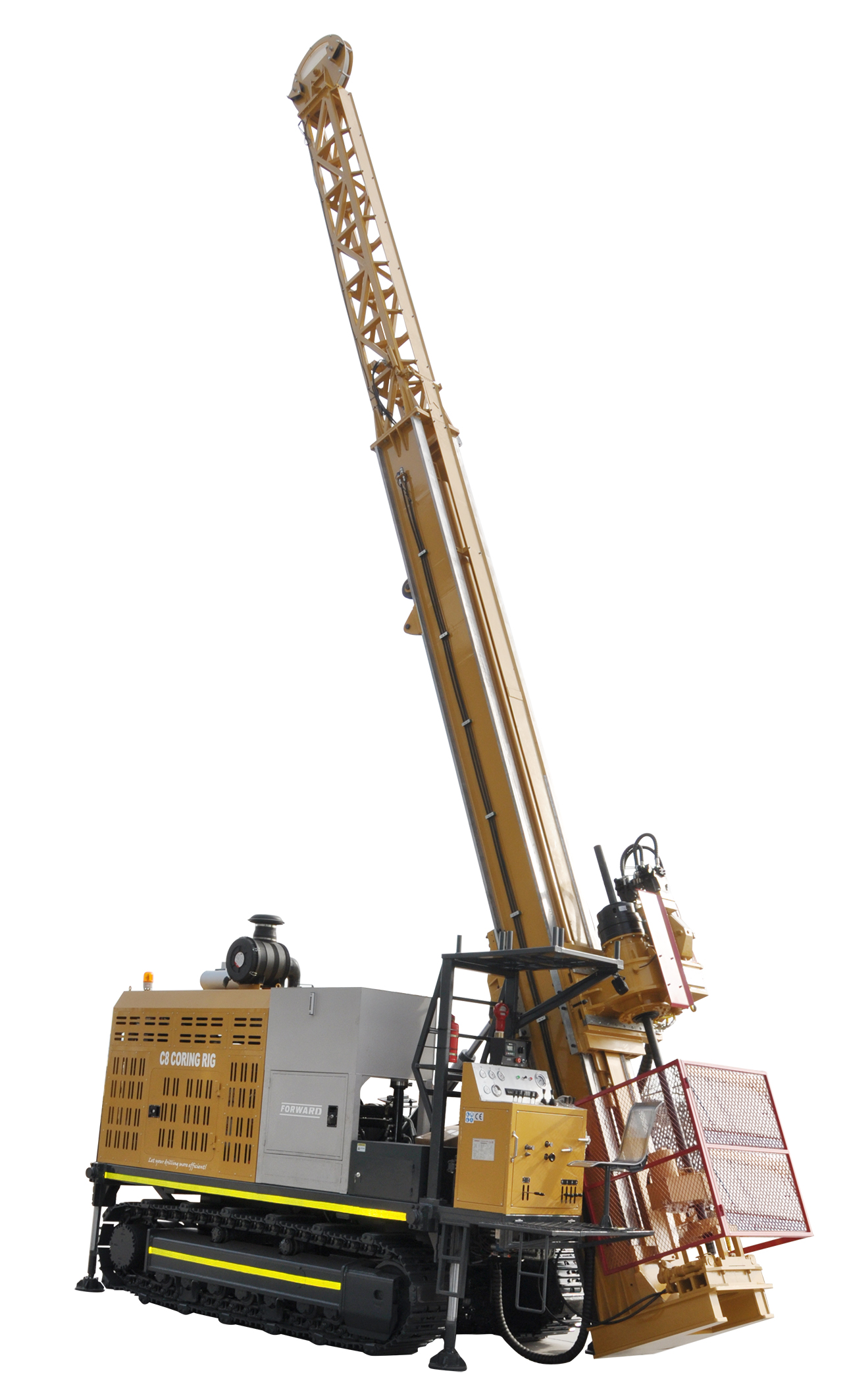

C8 取芯钻机

FORWARD'S C8 是一款非常坚固的履带式钻机,具备所有钻工所寻求的用户友好功能,且触手可及。该钻机在严格的质量控制协议下制造,并在发货前经过严格测试。

C8 的设计注重可靠性,仅使用最优质的一流部件组装,例如丹佛斯泵阀门、液压马达、Manuli 软管和康明斯发动机。

C8 配备的 3 速变速箱可自由组合扭矩和转速。

C8 配备 PQ 卡盘和 4700 毫米的旋转行程,便于处理 4.5 米长的钻杆。

可折叠的桅杆和提升支架确保了操作的简便性。现代设计包含安全防护罩和紧急停止按钮等安全功能,使钻机操作既用户友好又安全。


特点与优势

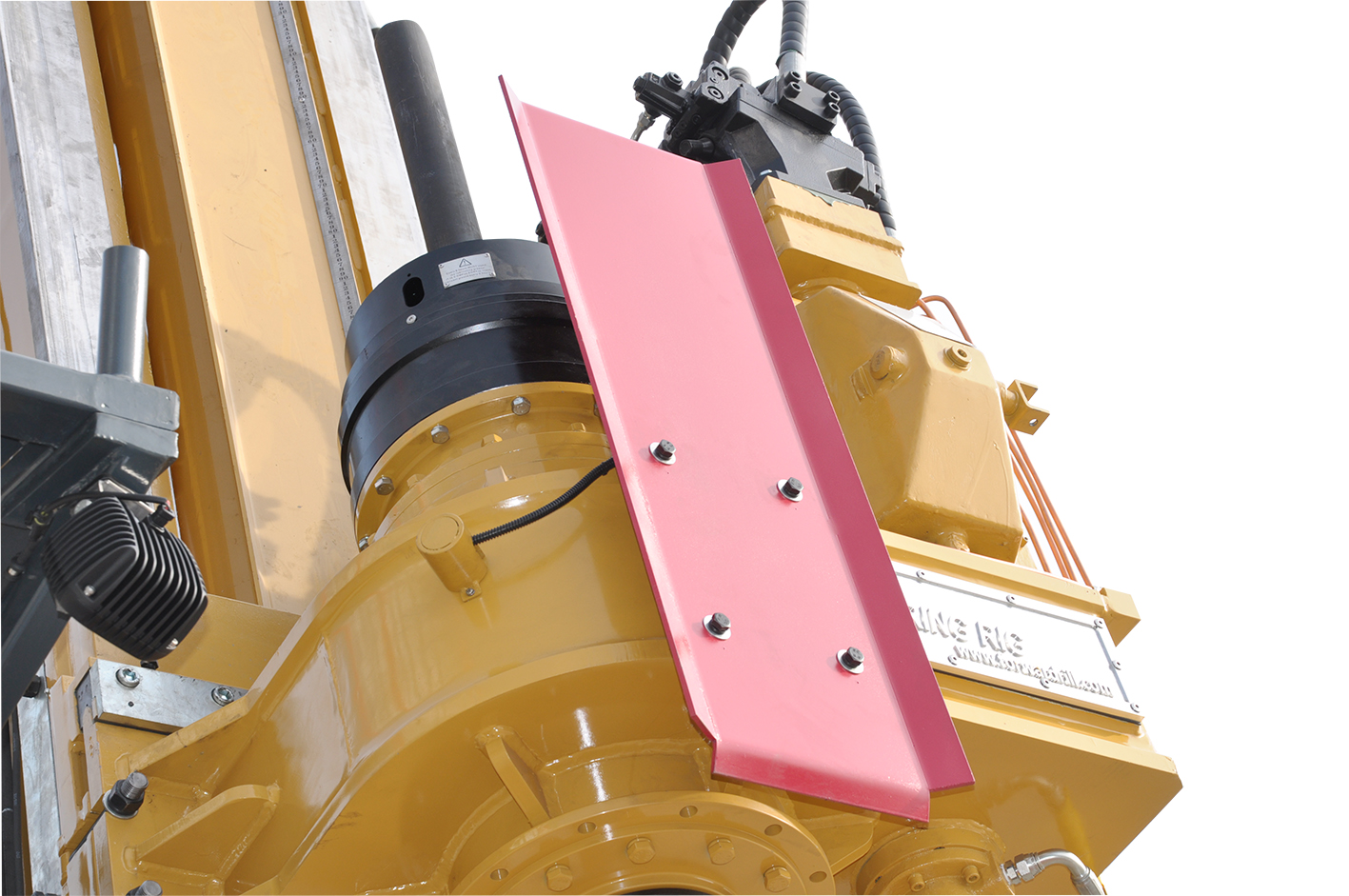

The 3 Speed Rotation Head can accept all sizes of coring rods up to PQ

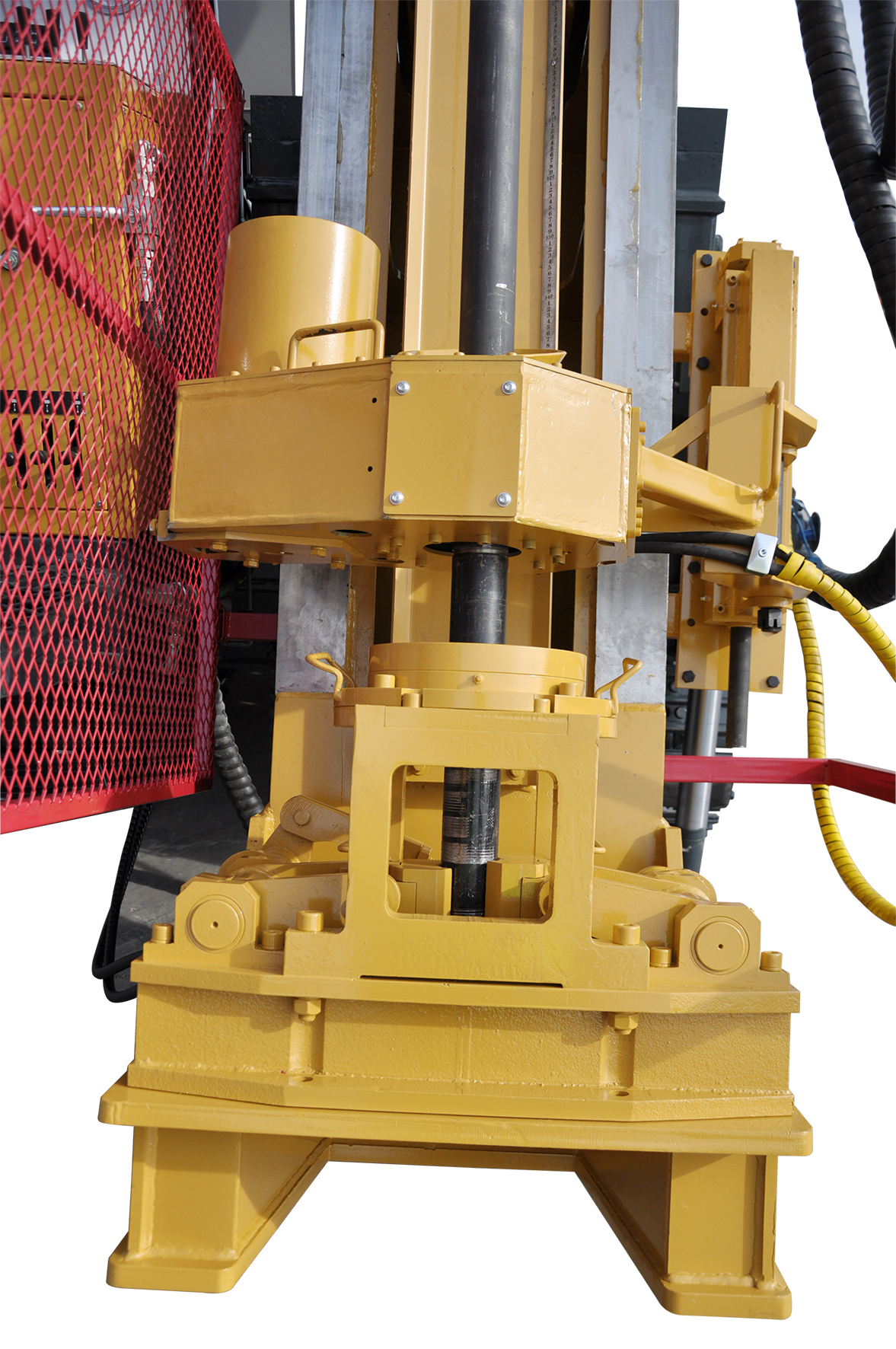

Patented chuck jaws and hydraulic opening/spring close function insures a fail-safe operation.
The Rotation Head is connected direct to the hydraulic feed cylinder which simplifies the whole mast design and minimizes maintenance.
The Rotation Head also slides off to the side and opens the whole mast up to run casing or pull tubes etc.
The Rigid design of the mast provides superior performance and reliability even under the toughest geological conditions.
The Mast raise cylinders are equipped with balancing valves to increase safety.
The folded mast allows the rig to be transported on short trailers or in a shipping container.

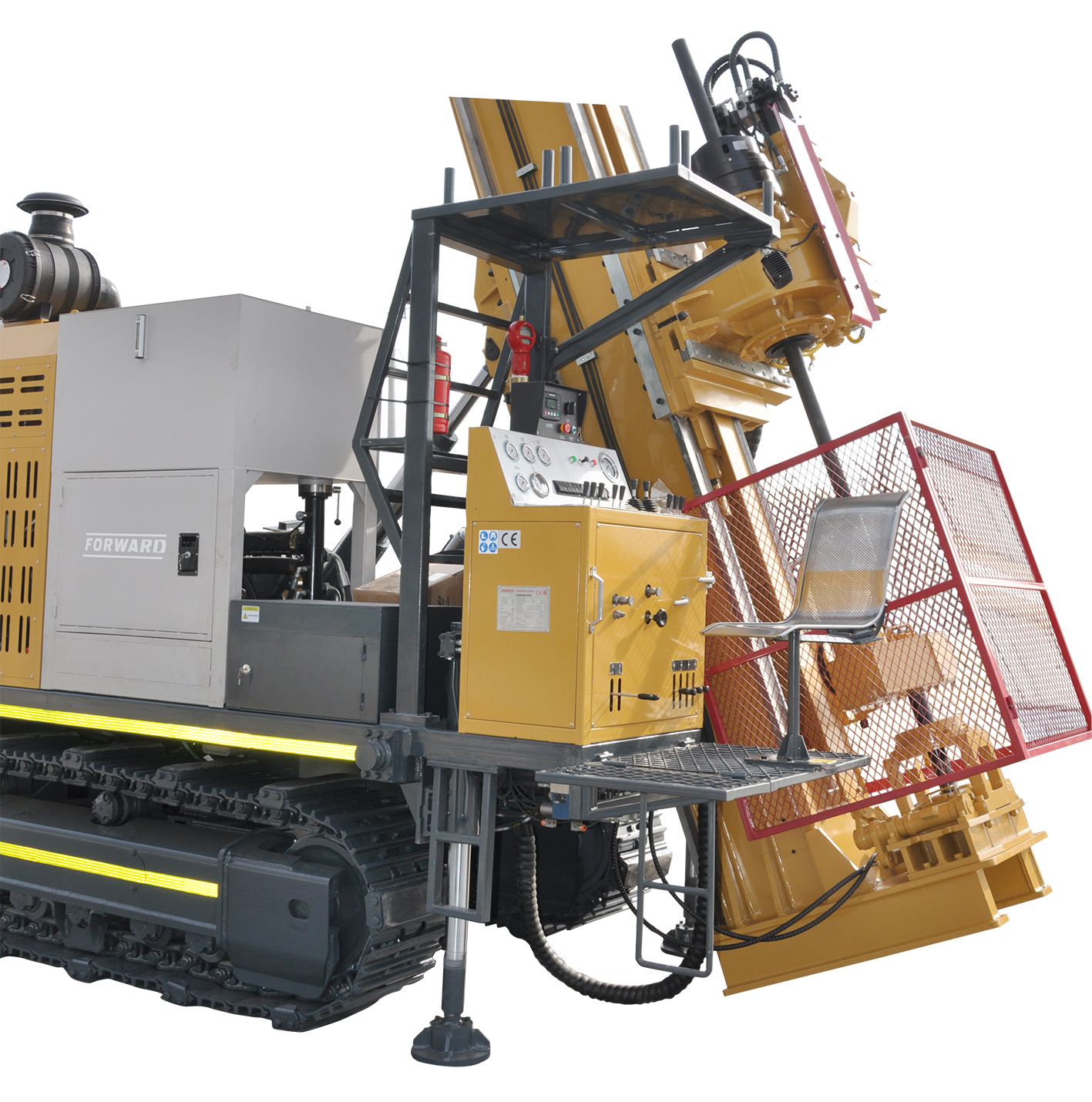

Both the Rotation and Fine Feed controls are fitted with friction dampeners with positive and easy to find neutral positions.
The steel hood provides adequate protection from the elements yet opens up for ease of maintenance.
All the hydraulic pumps are genuine Variable Displacement, Pressure Compensated, Load Sensed Sauer Danfoss Piston pumps.

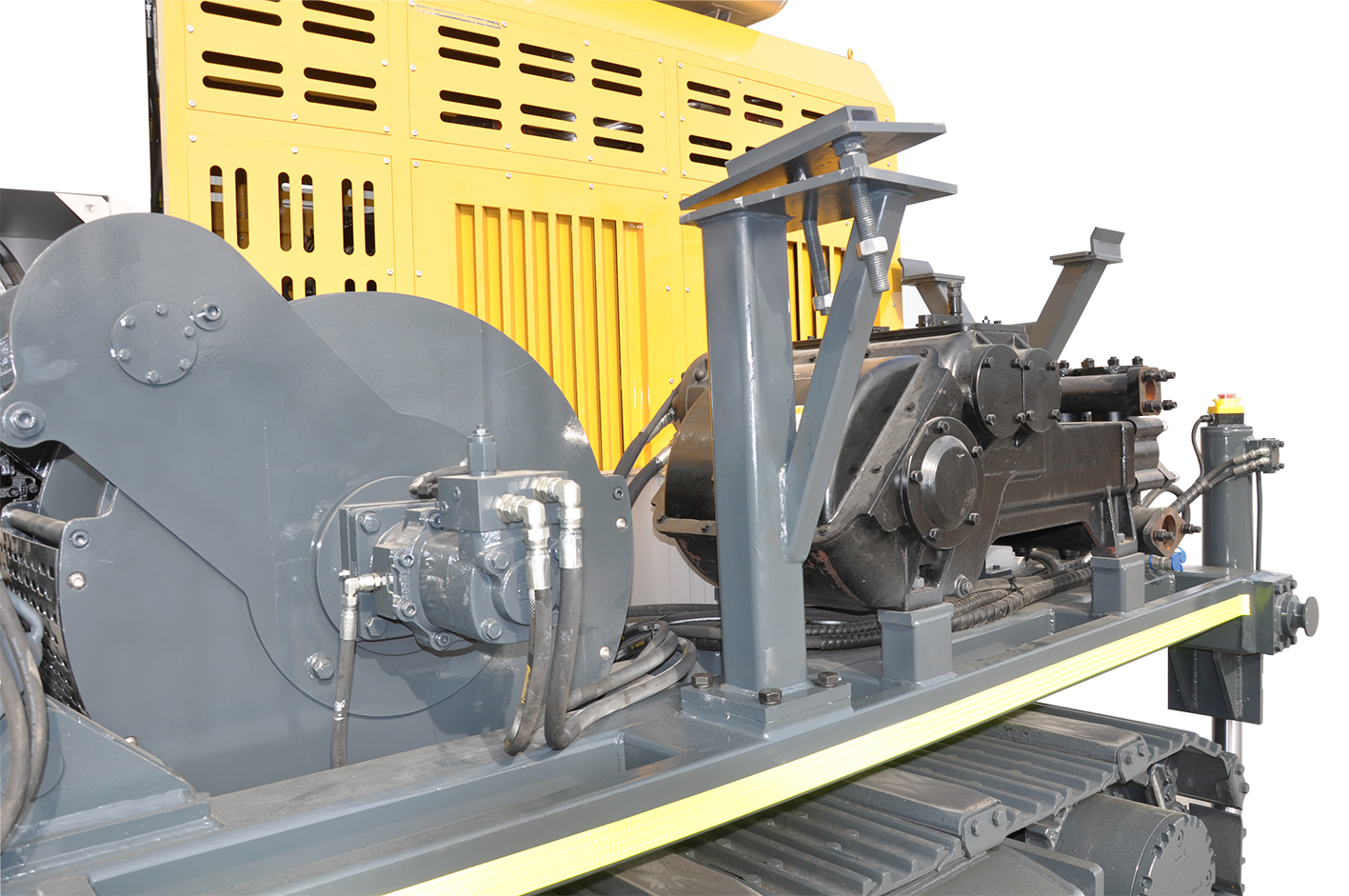

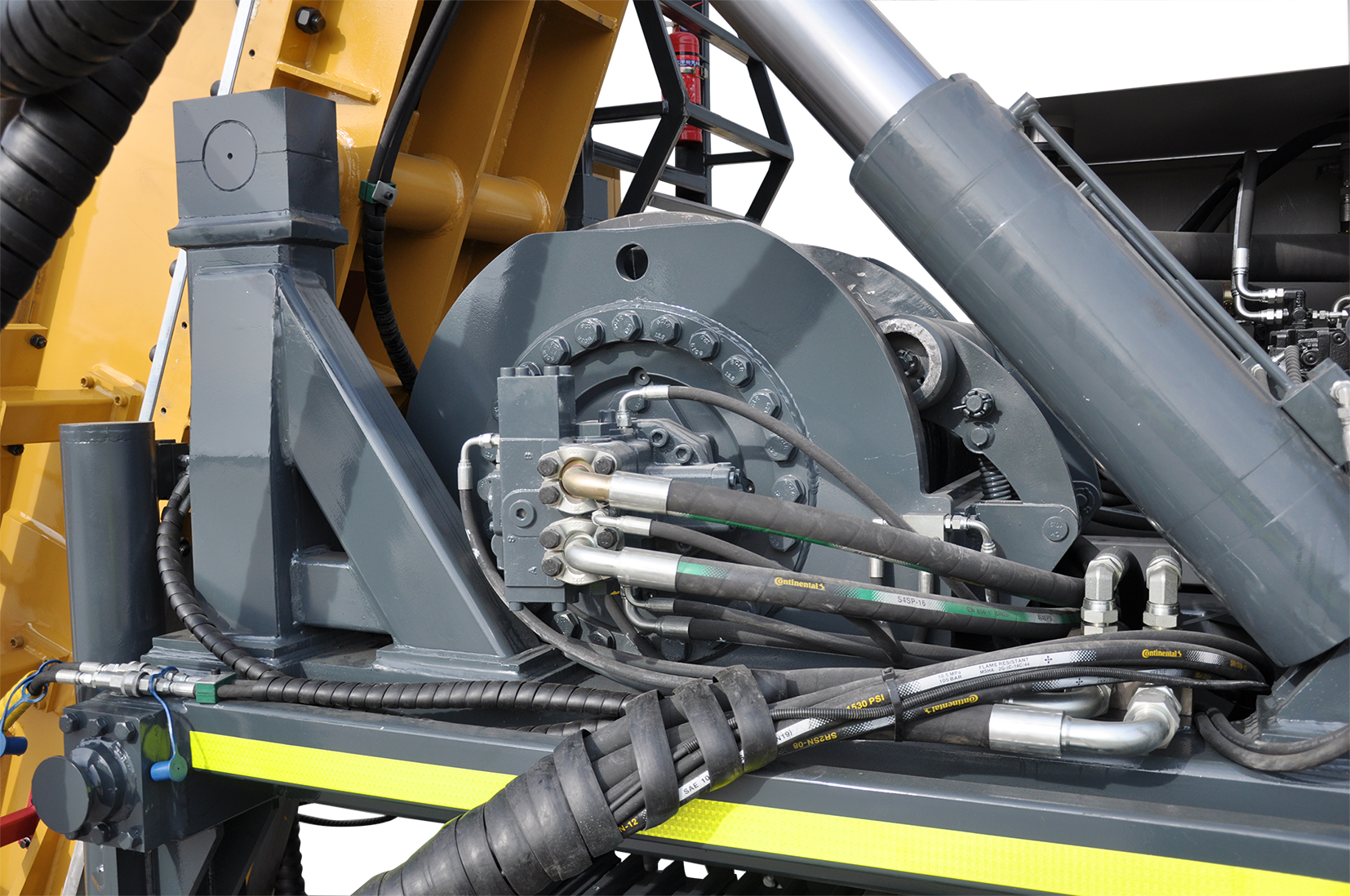

The Haul Winch is securely mounted central to the rig chassis
The Wireline Winch has auto spooling and 4000 meters capacity.

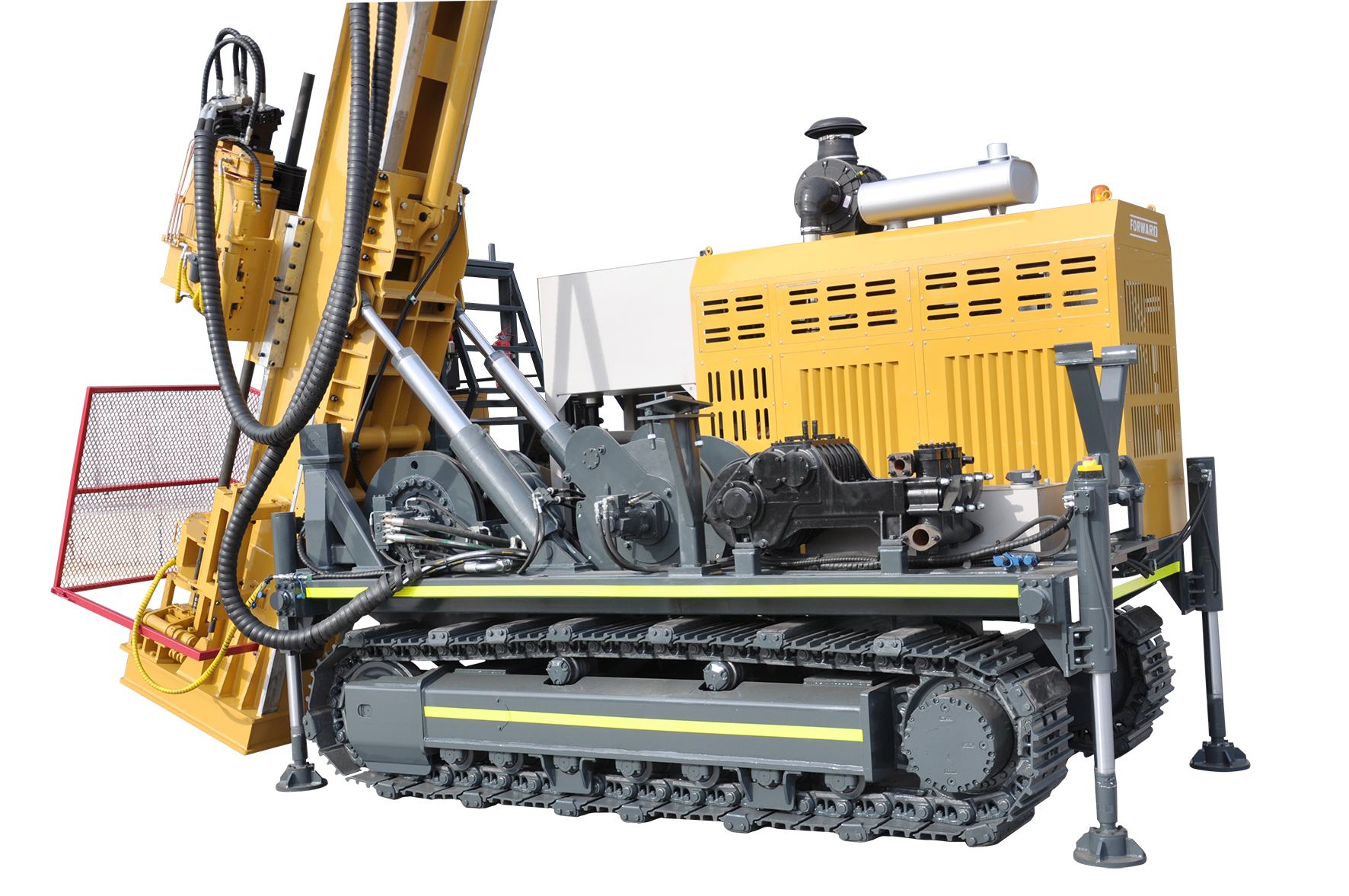

The Crawler chassis is manufactured in house and has quality Korean sourced hydraulic drive motors.
规格参数
详情
Drill Capacity
Diesel Engine
Torque and RPM Ratings
Rotation Unit
Mechanical Transmission
Hydraulic Chuck
Routation Unit Lubrication
Rotation Feed Stroke
Feed Pull
Feed Trust
Drilling Angle
Hook load for Main Line Hosit
Hook Load for Line Hoist
Fuel Tank Capacity
Fluid Circulation Pump
Weight
Dimension in Transport
数据
NQ -- 3000 mts; HQ -- 2400 mts; PQ -- 1750 mts
Cummins QSL8.9-C360, 268 Kw
7 200 Nm, 3 shifts, 0 - 1280 RPM
2 sets Danfoss motor drived, Stand PQ - Hollow Spindle
Funk 3 Speed
Disc spring closed, hydraulic open, Axial holding capacity 55 klbf.
Focrce fed to the bearing and oil bath for gears
4 700 mm
310 000 N
155 000 N
30º off horizontal to 90º vertical down
230 KN
22 KN
300 L
320 LPM@1450 psi
25 600 Kg
8 400 ×2 500 × 2 700 mm
项目案例
客户反馈
常见问题
FORWARD公司生产哪些类型的钻机?

FORWARD公司专注于岩心钻机和水井钻机的设计和制造。我们的产品广泛应用于矿产勘探、地质调查、地下水开发和工程钻探项目。我们提供标准型号和定制解决方案,以满足不同的项目需求。

FORWARD钻机在哪些地区使用?

FORWARD钻机已在亚洲、欧洲、非洲、中东和美洲的60多个国家投入使用。我们的设备已成功应用于各种环境,包括沙漠、热带地区、高海拔地区和北极地区,展现出强大的适应性和可靠性。

FORWARD能否提供定制钻探解决方案?

是的。FORWARD可根据客户需求提供定制钻机配置,包括钻探深度、孔径、动力系统、环境条件和当地法规。我们的工程团队与客户紧密合作,确保设备完全符合其特定项目需求。

FORWARD如何确保产品质量和可靠性?

FORWARD在设计、制造和测试的各个环节都实施严格的质量控制。关键部件均采购自国际知名供应商,每台钻机在交付前都经过全面的工厂测试,以确保性能稳定、安全可靠、使用寿命长。

FORWARD提供哪些售后服务?

FORWARD提供全球售后支持,包括技术培训、备件供应、远程故障排除以及必要的现场服务。我们的服务团队致力于快速响应,最大限度地减少停机时间,确保设备持续运行。

客户如何获取技术信息或报价?

客户可以通过我们的网站、电子邮件或授权分销商联系FORWARD,索取技术规格、项目咨询或报价。我们的销售和技术团队将及时提供专业的支持和详细信息。
